Welding Fixture
An early manufacturing project for a fixture that holds a workpiece during welding.
Fabricated by workshop team · historical work
- Date / period
- 2021
- Place
- Kentucky
- Contribution
- Adam: design and manufacturing documentation at O’Neal Manufacturing Services; workshop team fabrication.
A recycled table became the base for a welding jig: a fixture that holds a workpiece in position during fabrication.
Adam prepared DraftSight drawings, SigmaNEST nesting and Epicor job documentation to connect the fixture design with the O’Neal workshop’s fabrication process. No measured production improvement is claimed.
Select an image to enlarge it in a new tab.
Reading the work
Read the table and fixture drawings together to follow the manufacturing geometry.

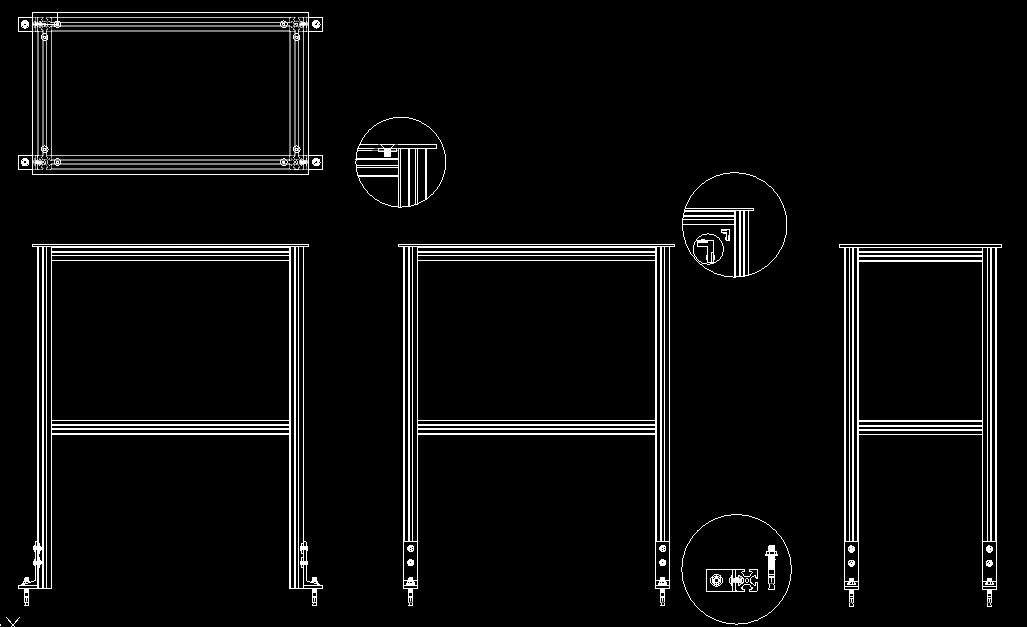

Table elevations and details document the supporting structure for the welding fixture.

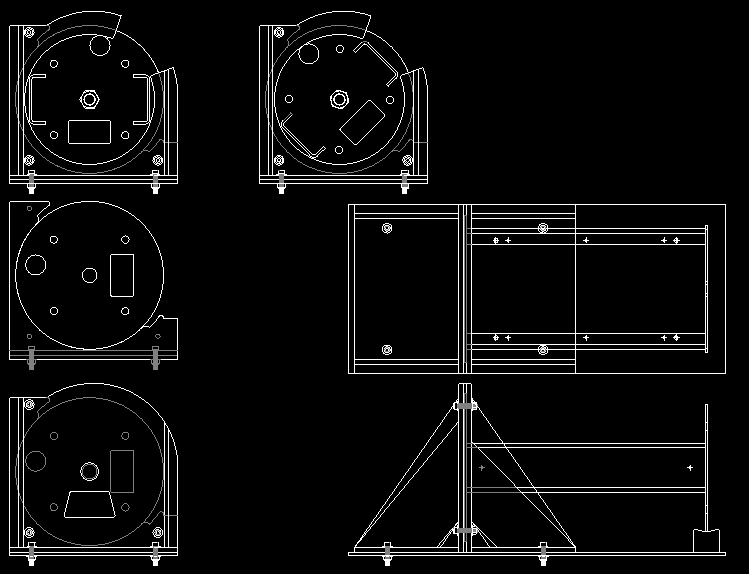

Fixture drawings locate the circular mounting elements and their relationship to the table.
